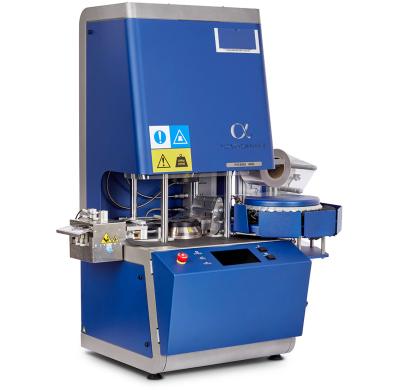

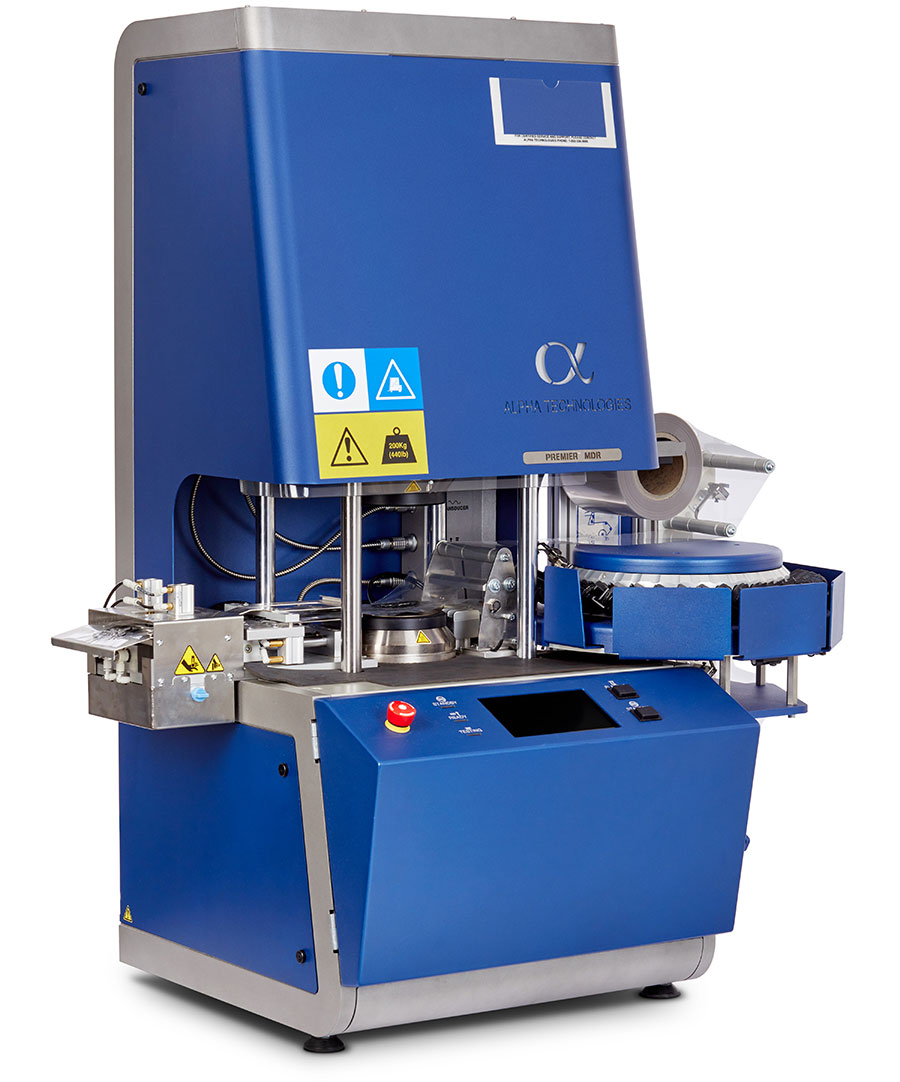

PREMIER™ MDR
Moving Die Rheometer
The MDR that’s driving the next generation of testing – delivering data with the highest consistency and long-term stability of all moving die rheometers.
The Premier™ MDR is built for optimum performance in both laboratory and production environments. Its streamlined design includes:
• an LED back-lit logo for test status indication,
• a wrap-around front cover and shield for ease of use and access,
• a touch-screen user interface,
• and a built-in storage drawer.
Features
• Dynamic Symmetry™
• Smart Alignment™
o A system that ensures dies remain parallel to reduce variation.
o A system that ensures excellent die cavity sealing for better repeatability.
With unsurpassed test repeatability and reproducibility, the Premier™ MDR provides a smaller instrument footprint for effective use of bench space.
The Premier™ MDR features improved forced air die cooling with independent control to the upper and lower dies, providing rapid temperature changes for better non-isothermal control.
The biconical cruciform-less dies with optimized groove profiles offer reduced slippage and improve performance with stiffer stocks.
A uniquely designed heater provides reduced temperature gradients and improved temperature recovery, while transducers provide both torque and pressure measurements.
Specifications
• Frequency: 100 cpm (1.67 Hz)
• Temperature Range: Ambient to 446°F (230°C)
• Strain: 0.5 Standard (7%); 0.2, 1.0, 3.0 and 7.17 degrees (2.8%, 14%, 42% or 100%) available
• Onboard:
o ML, MH, MH-ML, Ts1, Ts2, T10, T50, T90,
o S” at ML, S” at MH, TD at ML, TD at MH,
o Max Cure Rate, Time at Max Cure Rate,
o Pressure point PH-PL and pressure time points
• Testing Standards: Meets ASTM D5289, ISO 6502, and DIN 53529
• Electrical:
o 100/110/120/130 VAC ± 10%, 60 ± 3Hz, 10 amp, single phase
o 200/220/240/260 VAC ± 10%, 50Hz ± 3 amp, single phase
• Air Pressure: 60 psi (414 Kpa, 4.2 kg/cm²) minimum
• Dimensions: W: 22 in (56 cm), D: 26 in (66 cm), H: 48 in (122 cm)
• Weight: Net 350 lbs (159 kg)
• LCD Touch Screen: 155 mm x 85 mm, resolution 800 x 480
Optional Feature
• Rapid Change™
An optional adjustable eccentric option that allows simple and fast oscillation angle changes without the need for re-calibration (0.5 degrees arc is standard).
