OV-SCF-10000C Oven Extraction Equipment
A. System Requirement
1. Power supply: 220V, 10A
(Include B-1. OV-SCF: Extraction Oven & B-2. PM-10000C: Digital Pressure Control Module)
2. Driven air: compressed dry air or general air (6~8 kg/cm²)
3. Cooling water: ≤5°C
4. LCO₂ supply
B. Detail Specifications
B-1. OV-SCF: Oven Extraction Furnace
1. Operation temperature: room temperature ~220°C (max).
2. Temperature control: heating rate ≥10°C
3. Output pressure: 1500 ~ 7250 psi
4. Operation capacity:
o High-pressure extraction vessels with size ranging of 60ml, 250ml, and 1.0L can be installed in OV-SCF and exchanged as needed.
5. High Pressure Extraction Vessel: 1 Liter
6. Double extraction loop: capable of 2 extraction set.
7. Extraction mode: continuous or batch extraction.
8. Cleaning method: capable of solvent injection device.
9. Flow control: tunable control with display of gaseous CO₂ flow rate.
10. Certification: IEC61010-2-010 (2nd Ed) for use with IEC61010-1:2001, certificate number: 97-0768.
11. Power supply: 220V, 10A
B-2. PM-10000C: Digital Pressure Control Module
1. Output pressure of system: 1500~7250 psi (depends on pressure of gas source).
2. Pneumatic pump
a. Output pressure: MAX 7250 psi.
b. Flow rate: 200 ml/min (under 4350 psi).
3. Heat exchanger inside (not include water chiller).
4. Safety protection system
a. Alarm of over-pressurization.
b. Alarm of operating timer.
c. Emergency stop and automatic gas-cut device for over-pressurization.
d. Pressure relief valve (full port type).
5. Touch panel control system.
6. Certification: IEC61010-2-010 (2nd Ed) for use with IEC61010-1:2001, certificate number: 98-0192.
7. Embedded communication Prot (USB/RS232) to support output device (printer).
8. Power supply: 220V, 1A

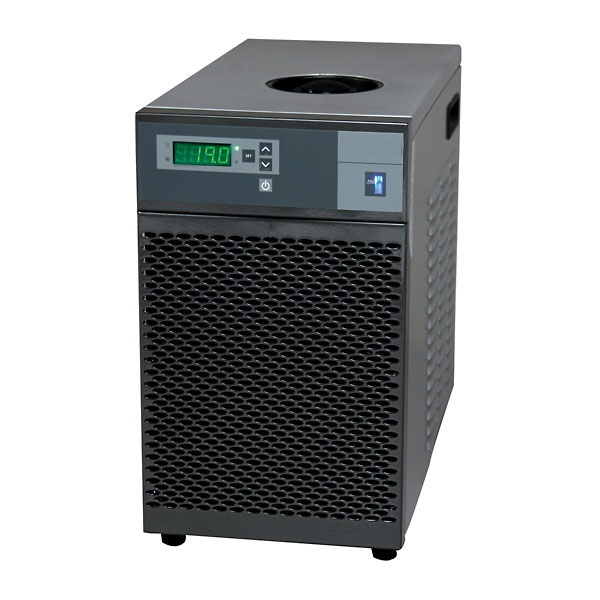

C. Water Chiller
1. Power supply: 220V, 7A
2. Operation temperature: -20°C ~40°C (max).
3. Temperature control: PID Automatic Algorithm.
4. Recycle Pump: SUS recycle pump.
5. Pump flow rate: 8L/min, 0.2kg/cm²
6. Compressor: 1/3Hp, 750Kcal/hr
7. Capacity: 10L

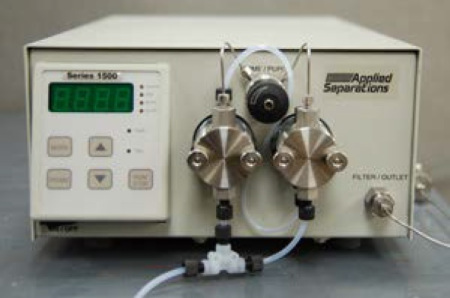

ESP-010B: Co-solvent pump
1. Flow rate: 0.01 ~ 9.99 ml/min
2. Display: LED digital display
3. Pressure: Max 5500 psi
4. Pump: SUS316
5. Accuracy: ±2%
6. Precision: ±0.2%RSD
7. Digital flow rate setting
8. Configure check valve
9. Dimension: 415 x 297 x 330 mm
10. Power supply: 220V / 1A
11. Pipeline: 1/8” seamless stainless steel pipe
12. Safety device: safety valve (Setting pressure: 5500 psi)
13. High pressure needle valve
14. Analogical pressure gauge
Vessels:
1. Volume: 60 ml
2. Operation Pressure: 500 Bar (max)
3. Operation Temperature: 200°C (max)
4. Upper and lower cover design of the vessel
1. Volume: 250 ml
2. Operation Pressure: 500 Bar (max)
3. Operation Temperature: 200°C (max)
4. Upper and lower cover design of the vessel
1. Volume: 1000 ml
2. Operation Pressure: 500 Bar (max)
3. Operation Temperature: 200°C (max)
4. Upper and lower cover design of the vessel
Power System
1. Power: 4.5 HP
2. Working Pressure: 0 ~ 8 Kg
3. Tank Volume: 60 L
4. Voltage: 220V / 50Hz / 13A
5. RPM: 1720
6. Displacement: 360 L/Min
7. Weight: 38 Kg
8. Dimension: 67 x 33 x 75 cm
