Forced convection by fan
The outer plates of the oven are made of electro galvanized steel coated with white and blue paints. The inner casing is made of bright polished stainless steel.
The FRANCE-ETUVES C3030 temperature controller is very accurate and particularly reliable. Measurement by PT100 or TCJ probe. Electronic PID temperature controller. Accuracy: 0.1°C. Color display, excellent visibility of temperatures. Functions : display of setpoint and measured temperature display (in percentage) of the heating power used date and time display Possibility of making 1 program with 8 steps: 4 programmable temperature ramps (°C/min) and 4 heating timer (max 99h59min) delayed start repeat loop monitoring of your current program (step and remaining time) pause or stop the program end of cycle buzzer fan speed control several settings of the protection thermostat (TWW or TWB modes) PID adjustment possibility of adding a temperature correction at 2 distinct temperatures (offsets) automatic fault diagnosis. Display of faults RS485 modbus multipoint communication: allows to control several ovens on the same network.

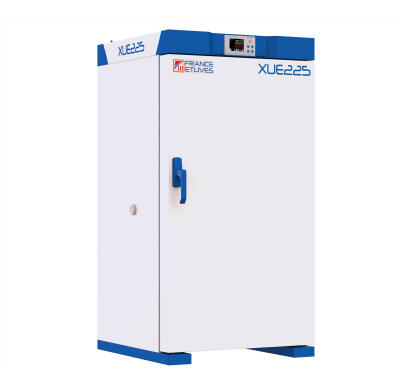

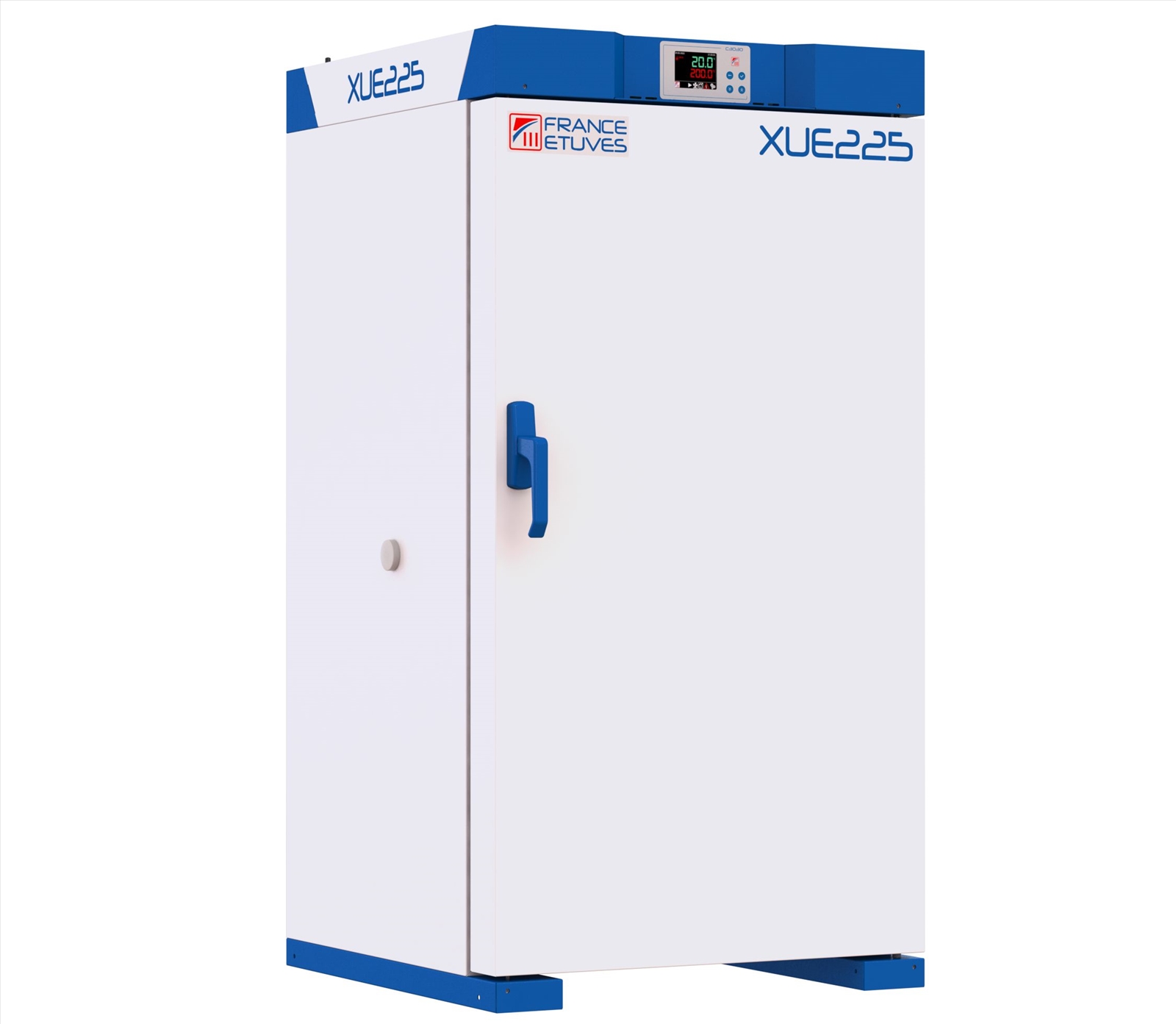

Model XUE225
Chamber volume: 225 litres
Performances :
Standard maximum temperature : 300 °C
Optional maximum temperature : 300 °C
Dimensions :
Chamber volume: 225 litres
Interior Dimensions (L x P x H) : 500 x 450 x 1000 mm
Exterior Dimensions (L x P x H) : 664 x 746 x 1312 mm
Partials product models shleves
Shelves quantity : 2 delivered / 17 maximum
Shelves dimensions : 470 x 420 mm
Max Load per Shelf / Total : 30 / 120 kg
Power & Divers :
Electrical Supply : 230V ~1P 50/60Hz 10A
Standard power 300 °C : 2000 Watts
Number of door(s) : 1
Ventilation flow rate : 400 m3/hour
Weight : 84 kg
