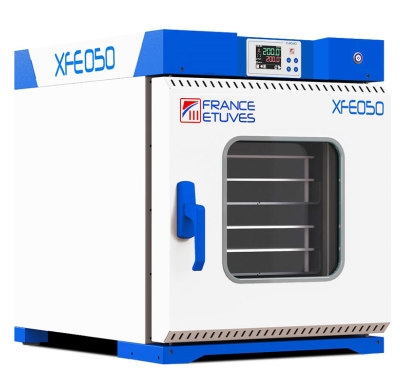

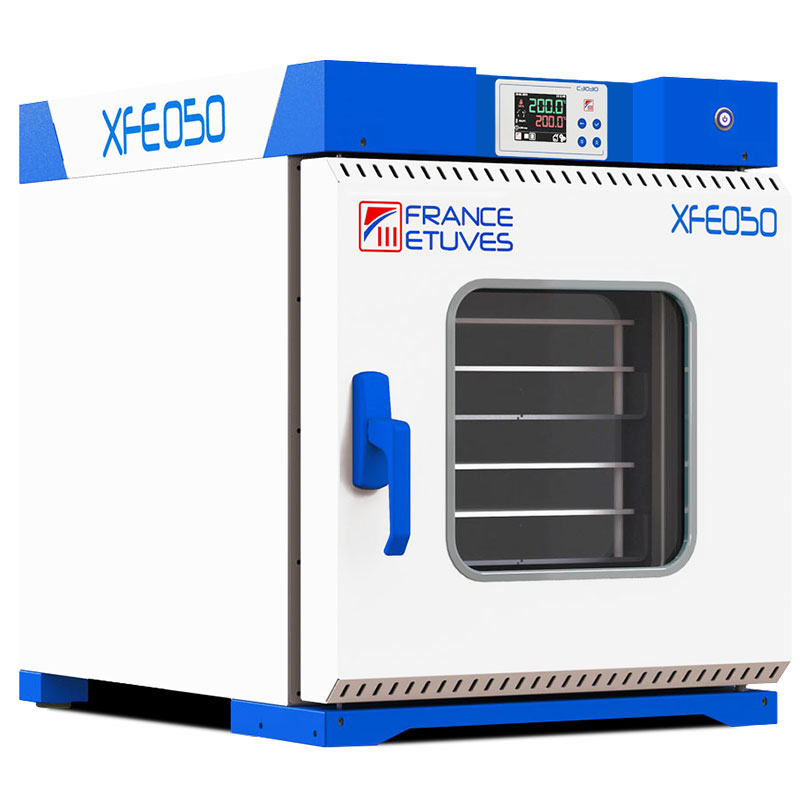

Vacuum Oven XFE050

Vacuum Oven

Model : XFL050

Performances
Maximum temperature : 200 °C (300°C as option)
Minimum temperature : Ambient temperature + 20°C
Temperature fluctuation : < ± 0.2 °C
Vacuum control accuracy : ⩽ 2 mbar (according to your vacuum pump)

Vacuum data
Vacuum range :up to -1000 mbar (relative pressure) or 1 mbar (absolute pressure)
Sensor : Piezo
Vacuum measurement range : 0 to -1000 mbar

Sizes*
Working volume : 51 liters
Internal sizes (W x D x H) : 320 x 500 x 320 mm
External sizes (W x D x H) : 580 x 751 x 680 mm
Thickness of the glass window : 10 mm
* Some options may change the sizes of the oven

Plateaux de chargement en aluminium
Nombre de plateaux : 1 livré / 5 maximum dans l'étuve
Dimensions plateau : 294 x 460 mm
Dimensions utiles du plateau dans l'étuve : 285 x 460 mm
Poids maximum admissible par plateau : 30 kg
Poids maximum total dans l'étuve : 60 kg (poids des plateaux non compris)

Trays made of aluminium
Power : 230V ~1P 50Hz 16A
Heating power : 1200 W
Total installed power with vacuum pump : 2350 W
Door number : 1
Weight : 85 k

Standard vacuum pump model recommended : DVP RC4D
